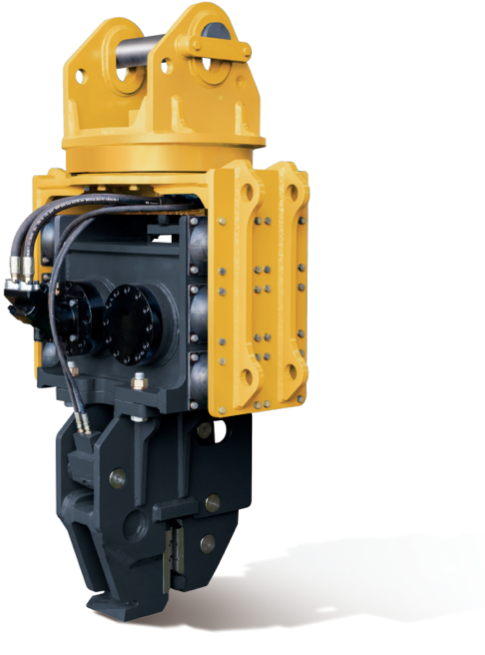

Motor
Vibro isolating rubber
Hook
Electrical parts
Bearing
L
H
W
Control valve
※
The above specifications are subject to change without prior notice for quality
improvement.
Description
Carrier
Clamping Jaw
Frequency
Slewing Degree
Dimension (L×W×H)
Oil Flow
Operating Pressure
Weight
Hammer
Extension boom
20~28
1600
600
65
2000~2500
360
1857 × 1042 × 650
130~180
180~200
28~34
1800
700
65
2000~2500
360
1959 × 1103 × 792
170~200
200~250
33~40
1900
700
65
2000~2500
360
2016 × 1196 × 830
200~260
200~250
SVH 08
SVH 10
ton
kg
kg
mm
bpm
degree
mm
lpm
bar
SVH 14
Unit
•Lower cost of maintenance than crane hammer.
•Outstanding workability and mobility.
•Easier operate in critical regions such as chaotic section of city, bridge area
and the
vicinity of high-voltage wires than crane hammer does.
•Equipped with high-powered hydraulic piston motor and suitable bearing for high
frequency vibration.
•Install vibro isolating rubber for high frequency purpose.
•Easy connect and disconnect the hammer by the use of excavator’s breaker hydraulic lines.
•The clamping lug can handle and move construction objects easily.
•Pile driving power 20% up compared to the existing equipments.
•Sufficient wear-resistant design and 360-degree revolution.
► Feature
