The above specifications are subject to change without prior notice for quality
improvement.
Description
Operating
Weight
Overall
Length
Required oil flow
Operating pressure
Impact rate
Hose diameter
Applicable carrier
Tool diameter
Silenced Type
(Box Type)
Standard Type
(Open Type)
Side Type
(Triangle Type)
Silenced Type
(Box Type)
Standard Type
(Open Type)
Side Type
(Triangle Type)
kg
lb
kg
lb
kg
lb
mm
inch
mm
inch
mm
inch
ℓ/min
gal/min
bar
psi
bpm
inch
mm
inch
ton
Unit
95
209
65
143
65
143
1090
42.9
1078
42.4
927
36.5
15~30
4~8
90~120
1280~1707
800~1400
1/2
40
1.6
0.8~2.5
SD 10-P
116
256
80
176
80
176
1147
45.2
1155
45.5
1005
39.6
20~40
5.3~10.6
90~120
1280~1707
700~1200
1/2
45
1.8
1.2~3
SD 20-P
130
286
98
216
98
216
1227
48.3
1186
46.7
1057
41.6
25~50
6.6~13.2
90~120
1280~1707
600~1100
1/2
53
2.1
2.5~4.5
SD 30-P
165
363
160
352
150
330
1409
55.5
1360
53.5
1176
46.3
30~60
7.9~16
100~130
1422~1849
500~1000
1/2
60
2.4
3~5.5
SD 40-P
280
616
260
572
260
572
1551
61.1
1495
58.9
1280
50.4
40~70
10.6~18.5
110~140
1565~1991
500~900
1/2
68
2.7
4~7
SD 50-P
358
788
340
748
340
748
1785
70.3
1728
68
1504
59.2
50~90
13.2~23.8
120~150
1707~2134
400~800
1/2
75
3.0
6~9

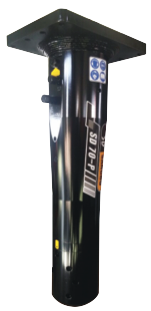

SD 70-P
