  Silenced Type (Box Type)
  The above specifications are subject to change without prior notice for quality improvement.
Description
Operating weight Overall length Required oil flow Operating pressure Impact rate Hose Diameter Tool diameter Required oil flow
kg lb mm inch ℓ/min gal/min bar psi bpm inch mm inch ton
Unit
1240 2728 2513 99 90~120 24~32 150~180 2176~2611 450~800 1” 120 4.7 13~20
SD 150VS
1710 3769 2766 109 120~160 32~43 160~180 2320~2610 400~700 1” 135 5.3 16~25

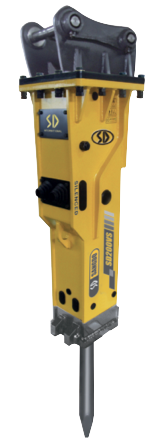

SD 200VS
2454 5410 3057 120 150~190 40~50 160~180 2320~2610 300~550 1” 150 5.9 25~32
SD 300VS
  Standard Type (Open Type)
  The above specifications are subject to change without prior notice for quality improvement.
Description
Operating weight Overall length Required oil flow Operating pressure Impact rate Hose Diameter Tool diameter Required oil flow
kg lb mm inch ℓ/min gal/min bar psi bpm inch mm inch ton
Unit
1252 2760 2637 103 90~120 24~32 150~180 2176~2611 450~800 1” 120 4.7 13~20

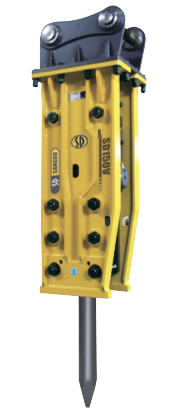

SD 150V
1668 3677 2695 106 120~160 32~43 160~180 2320~2610 400~700 1” 135 5.3 16~25

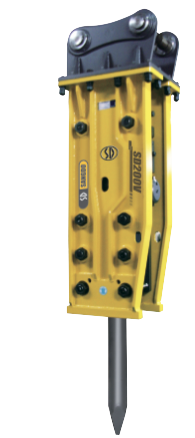

SD 200V
2380 5247 2788 109 150~190 40~50 160~180 2320~2610 300~550 1” 150 5.9 25~32
SD 300V
  Side Type (Triangle Type)
  The above specifications are subject to change without prior notice for quality improvement.
Description
Operating weight Overall length Required oil flow Operating pressure Impact rate Hose Diameter Tool diameter Required oil flow
kg lb mm inch ℓ/min gal/min bar psi bpm inch mm inch ton
Unit
1269 2798 2590 102 90~120 24~32 150~180 2176~2611 450~800 1” 120 4.7 13~20
SD 150VE
1684 3712 2650 104 120~160 32~43 160~180 2320~2610 400~700 1” 135 5.3 16~25

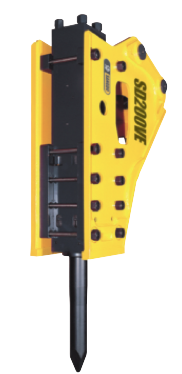

SD 200VE
2394 5277 2710 107 150~190 40~50 160~180 2320~2610 300~550 1” 150 5.9 25~32
SD 300VE
