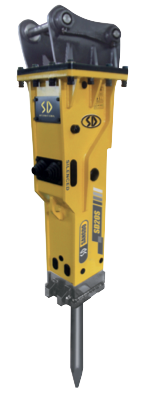

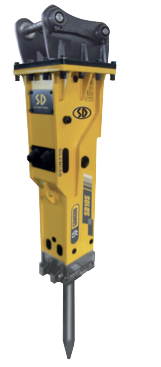

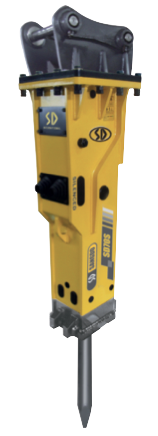

●   Silenced Type (Box Type)
※   The above specifications are subject to change without prior notice for quality improvement.
Description
Operating weight Overall length Required oil flow Operating pressure Impact rate Hose Diameter Tool diameter Required oil flow
kg lb mm inch ℓ/min gal/min bar psi bpm inch mm inch ton
Unit
100 220 1087 42 15~25 4~7 90~120 1280~1707 700~1200 1/2” 40 1.6 0.8~2.5
SD 10S
134 295 1215 47 20~30 5~8 90~120 1280~1707 700~1200 1/2” 45 1.8 1.2~3.0
SD 20S
148 326 1285 50 25~40 7~11 90~120 1280~1707 550~1000 1/2” 53 2.1 2.5~4.5
SD 30S
186 410 1363 53 25~50 6.5~13 90~120 1280~1707 500~900 1/2” 60 2.4 3.0~5.5
SD 40S
304 670 1682 66 40~70 10.5~18.5 110~140 1565~1991 500~800 1/2” 68 2.7 4.0~7.0
SD 50S
405 892 1684 67 50~90 13~24 120~150 1707~2134 400~800 1/2” 75 2.9 6.0~9.0
SD 70S

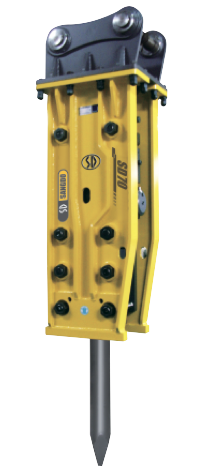

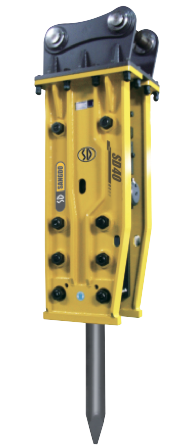

●   Standard Type (Open Type)
※   The above specifications are subject to change without prior notice for quality improvement.
Description
Operating weight Overall length Required oil flow Operating pressure Impact rate Hose Diameter Tool diameter Required oil flow
kg lb mm inch ℓ/min gal/min bar psi bpm inch mm inch ton
Unit
70 154 1050 41 15~25 4~7 90~120 1280~1707 700~1200 1/2” 40 1.6 0.8~2.5
SD 10
87 191 1146 45 20~30 5~8 90~120 1280~1707 700~1200 1/2” 45 1.8 1.2~3.0
SD 20
106 233 1230 48 25~40 7~11 90~120 1280~1707 550~1000 1/2” 53 2.1 2.5~4.5
SD 30
178 392 1288 50 25~50 6.5~13 90~120 1280~1707 500~900 1/2” 60 2.4 3.0~5.5
SD 40
272 599 1491 58 40~70 10.5~18.5 110~140 1565~1991 500~800 1/2” 68 2.7 4.0~7.0
SD 50
384 846 1613 63 50~90 13~24 120~150 1707~2134 400~800 1/2” 75 2.9 6.0~9.0
SD 70

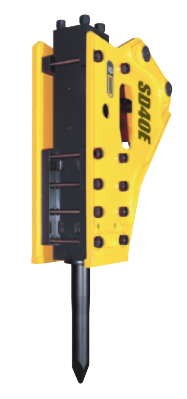

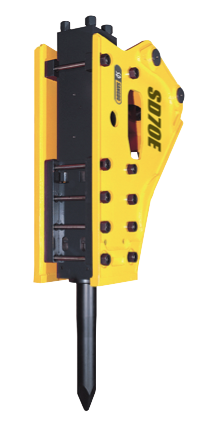

●   Side Type (Triangle Type)
※   The above specifications are subject to change without prior notice for quality improvement.
Description
Operating weight Overall length Required oil flow Operating pressure Impact rate Hose Diameter Tool diameter Required oil flow
kg lb mm inch ℓ/min gal/min bar psi bpm inch mm inch ton
Unit
70 154 899 35 15~25 4~7 90~120 1280~1707 700~1200 1/2” 40 1.6 0.8~2.5
SD 10E
85 187 1010 39 20~30 5~8 90~120 1280~1707 700~1200 1/2” 45 1.8 1.2~3.0
SD 20E
104 229 1074 42 25~40 7~11 90~120 1280~1707 550~1000 1/2” 53 2.1 2.5~4.5
SD 30E
154 339 1124 44 25~50 6.5~13 90~120 1280~1707 500~900 1/2” 60 2.4 3.0~5.5
SD 40E
264 582 1312 51 40~70 10.5~18.5 110~140 1565~1991 500~800 1/2” 68 2.7 4.0~7.0
SD 50E
380 837 1366 53 50~90 13~24 120~150 1707~2134 400~800 1/2” 75 2.9 6.0~9.0
SD 70E
